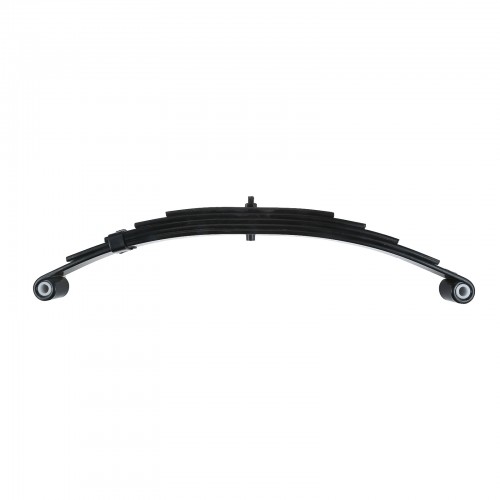

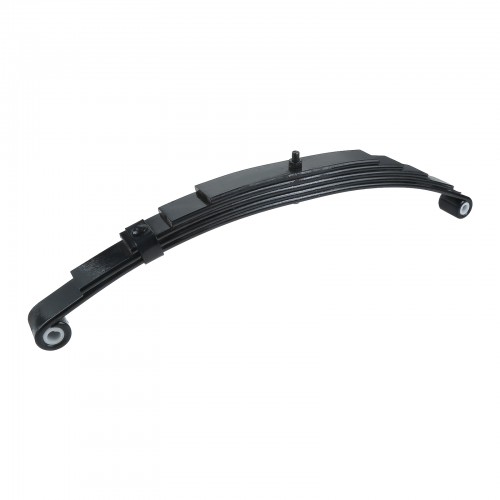

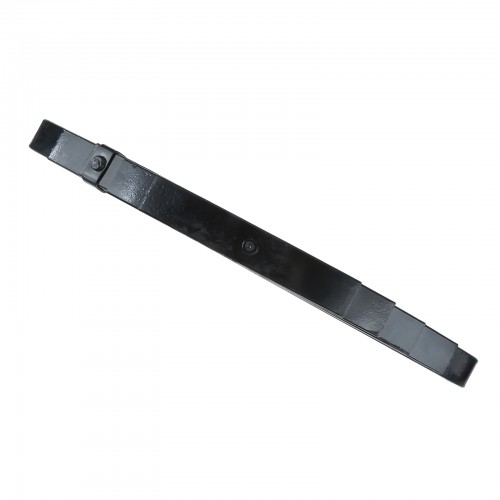

Specifications：

Spring Capacity: 750kgs

Axle Capacity: 750kgs

Number of Leavs: 5

Leaf Thickness:9mm

Spring Width:45mm

Centre eye to Centre eye:approx 640mm

End to End:approx670mm

Spring Eye size:9/16""

Camber Arc Height:approx 102mm (SPRING ONLY. NOT ASSEMBLED ON HANGERS)

Meterial: Steel


Installation Instructions:

1、Eye of spring will attach by a 9/16"" bolt to front hanger mounted to trailer or to shackle straps from equalizer.

2、Rear eye will then attach by another 9/16"" bolt to rear hanger or to shackle straps from equalizer

3、Suggested to insert new suspension bolts and tighten to manufacturer's specs.

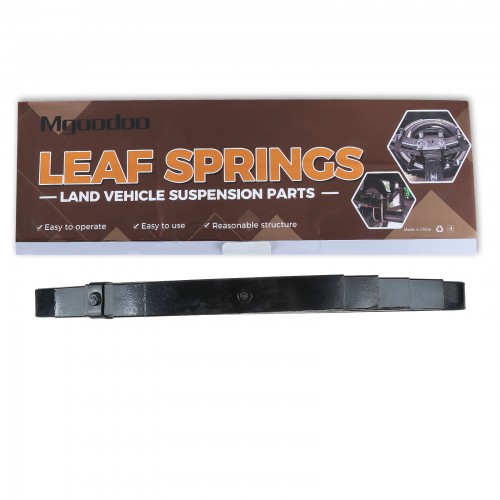

Package List:

Leaf Spring x 1
